1: F series audio it is to fill the indoor multi-purpose gap, to achieve a special box dedicated, one-to-one service, specially optimized voice and high frequency part, fine material selection, novel structure.

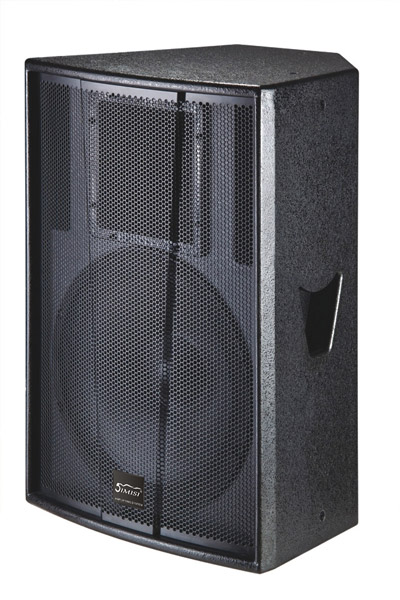

2. Structural characteristics: the system consists of a high-frequency driver and a 15-inch environment-friendly high-power bass. With a unique frequency division design, the system adopts imported electronic components, bringing the American style to the Chinese market.
3: the selected original high-quality unit and the combination of its own American audio technology, so that it can achieve the effect of high definition, loud pressure level, low distortion, the sound is mainly prominent in the high and medium frequency clear, bright, penetrating, excellent voice deduction, bass plump, strong and elastic; The design of the outer box is exquisite and beautiful, with years of professional painting processing technology, which is convenient for hanging. As the main performance of the multifunctional speakers, cost-effective is its biggest feature, its birth will be to the mainstream market will bring a strong impact effect.
4. Applicable venues: stadiums, restaurants, shopping malls and other indoor venues, theaters, concert halls, concerts, cafes, performance halls, conference rooms, clubs.
Model | F-15+ | F-12+ | F-10+ |
System
type |
2-WAY FULL RANGE | 2-WAY FULL RANGE | 2-WAY FULL RANGE |
Cell
configuration |
LF:15"x1,HF:3"x1 | LF:12"x1,HF:1.73"x1 | LF:10"x1,HF:1.73"x1 |
Response
frequency £¨¡À3dB£© |
45Hz-18KHz | 50Hz-18KHz | 55Hz-18KHz |
Rated
power |
450 | 350W | 250W |
Peak
power |
1800W | 1400W | 1200W |
The
rated impedance |
8 Ohms | 8 Ohms | 8 Ohms |
The
sensitivity |
95dB | 95dB | 95dB |
Press
the loudest level |
121dB | 121dB | 121dB |
Diffusion
Angle £¨HxV£© |
80*50 | 80*50 | 80*50 |
Connect
the socket |
NL4speakon x2,1+1- | NL4speakon x2,1+1- | NL4speakon x2,1+1- |
Frequency
division mode |
Passive | Passive | Passive |
Box
appearance technology |
Black Water-based Paint /Black waterborne paint |
Black Water-based Paint /Black waterborne paint |
Black Water-based Paint /Black waterborne paint |
The
installation |
19 x M8 suspension point, 36mm support seat | 19 x M8 suspension point, 36mm support seat | 19 x M8 suspension point, 36mm support seat |
The net
weight |
30KG | 19KG | 17.5KG |
Product
size |
470W*440D*685H | 395W*380D*565H | 350W*320D*530H |
Product
packaging |
545W*525D*780H | 470W*440D*660H | 400W*385D*620H |
